Service relationships are used to reveal the connection and correlation status between services.
A relationship can be set up between a minimum of 2 services, up to 20 services for each relationship type. They can be a dependency between services (Service A - Service B) or containment of services (Service A = Service B + Service C)
Service relationships are defined from the detail of the service definition page. Follow the guidelines below to configure a new relationship.

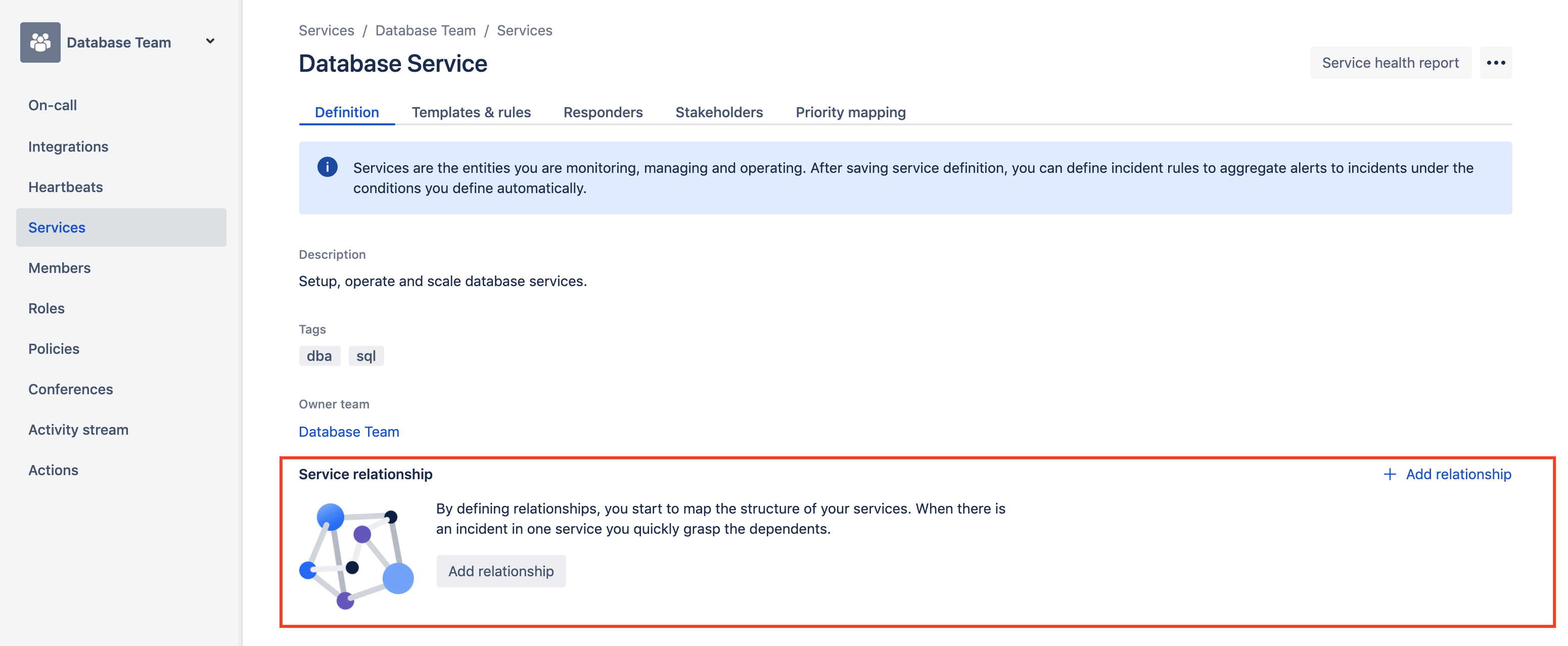

- To create a service relationship, go to the Services page under a team. On the Definition tab, click Add relationship button.

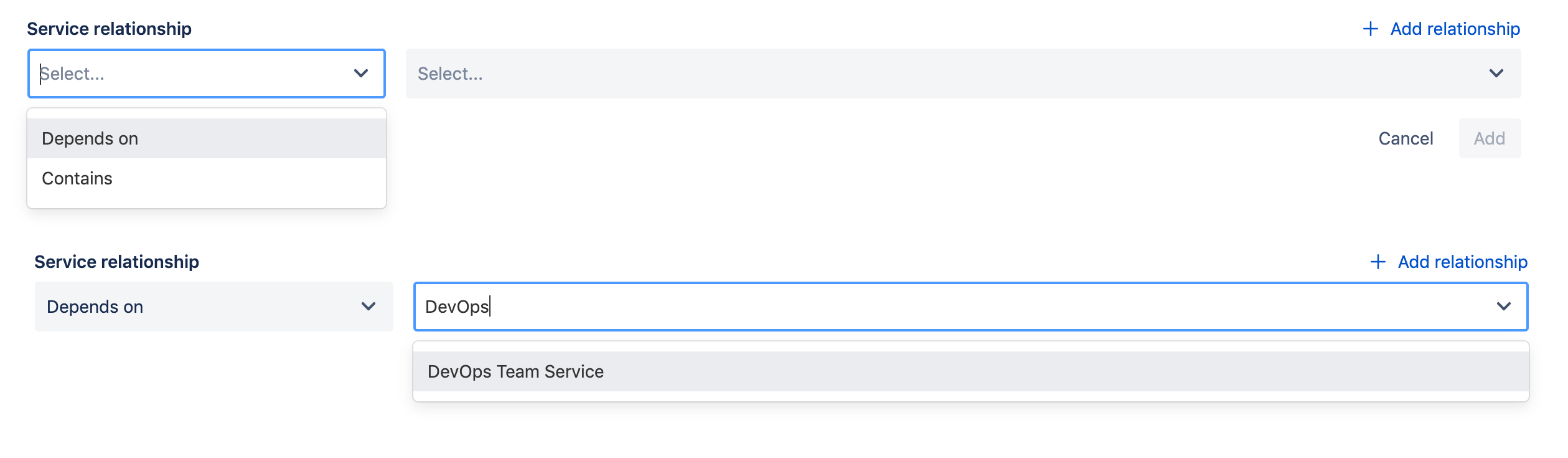

Currently, there are two relationship types in Opsgenie: Depends on and Contains. Select a relationship type, then select a service.

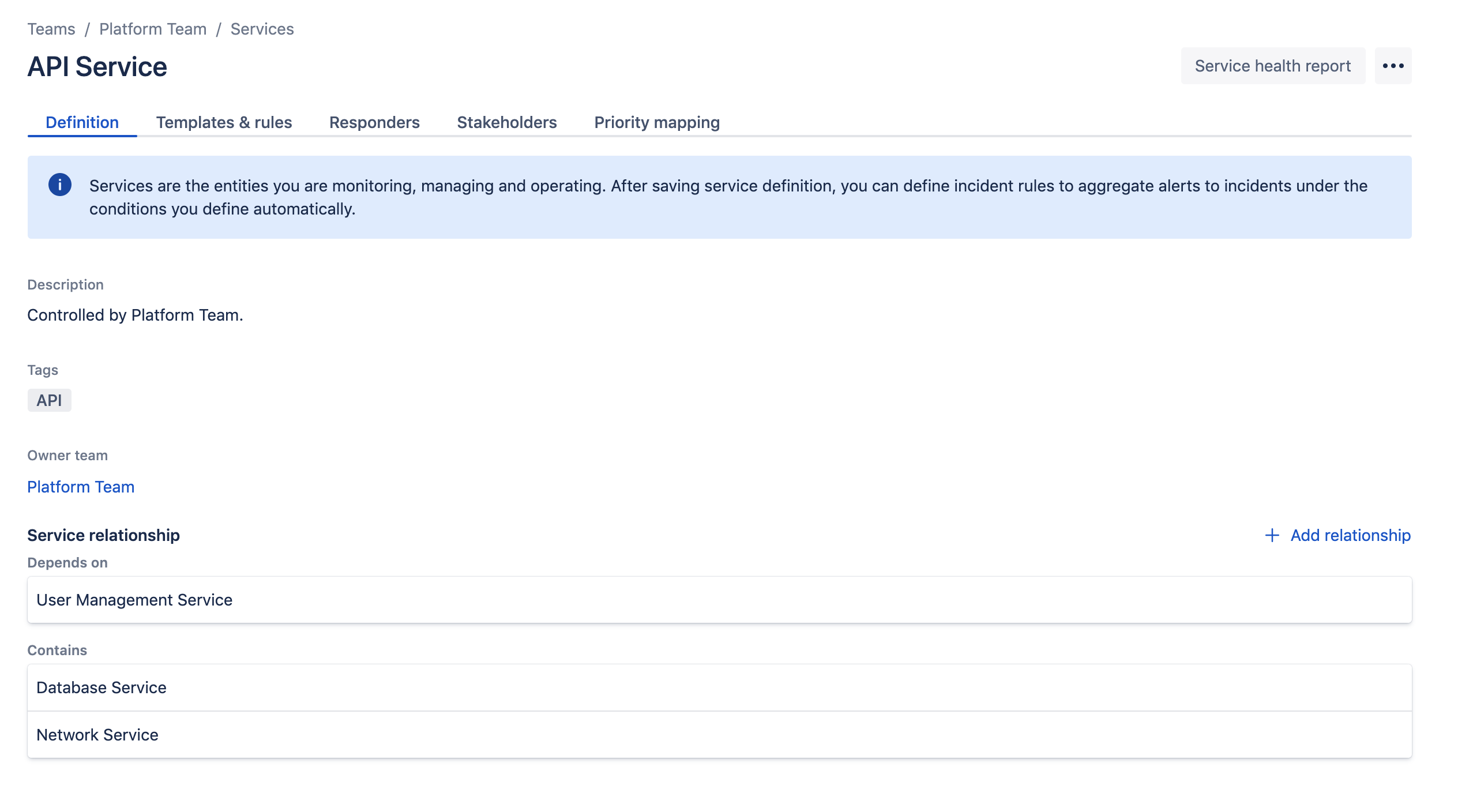

- After adding, you can view the existing service relationship configurations from the service definition page.
